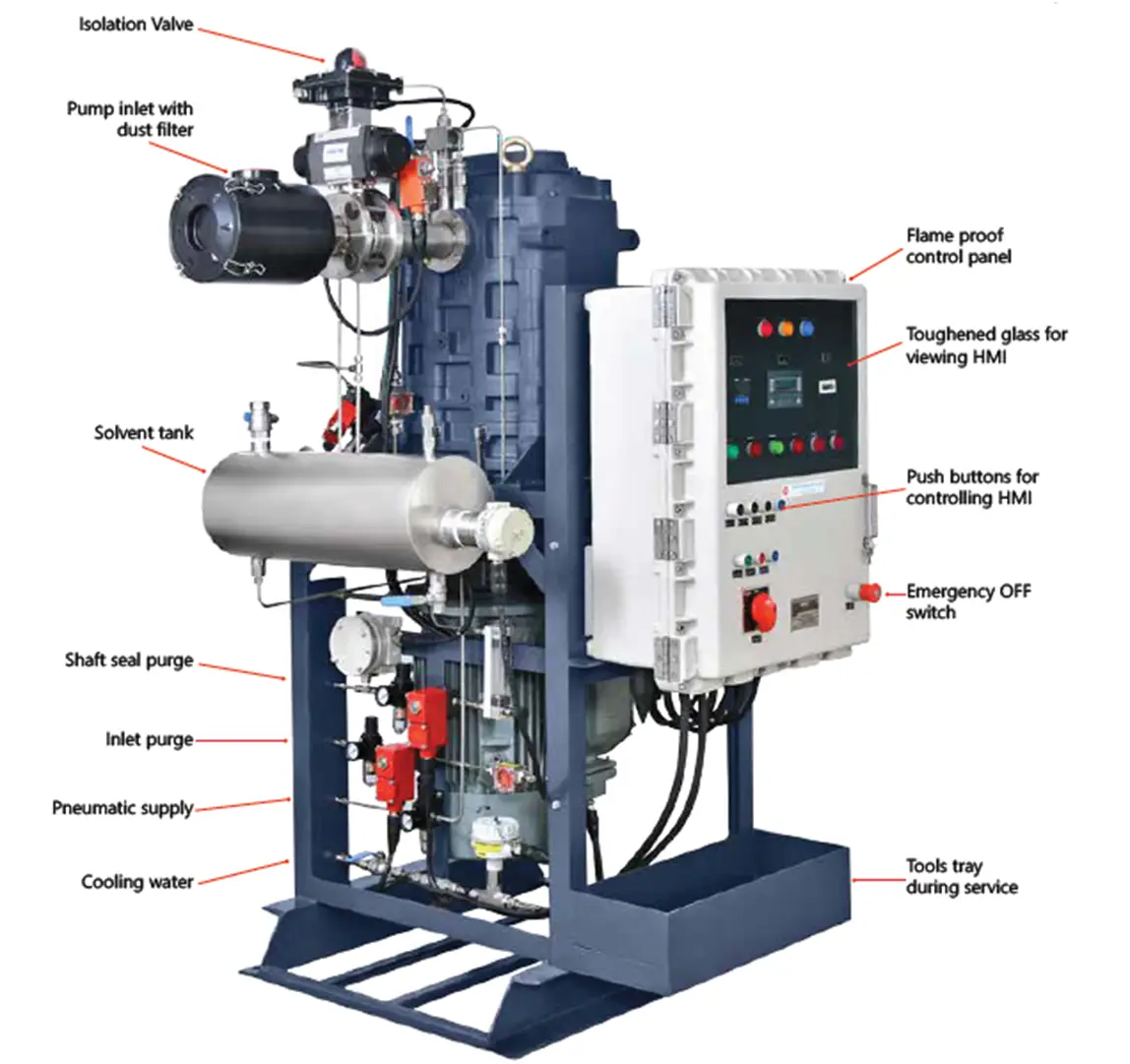

Dry Vacuum System
Salient Features :
- Vertical Design
- Uncoated Pump
- Without Mechanical Seal
- Maintenance at Site
- Lower Ownership Cost
Performance Data:
| Particulars | Unit | DP300/DP300S |
|---|---|---|
| Description/Frequency/Phase | Hz | 50 |
| Orientation | - | Vertical |
| No. of stages | - | 4 |
| Construction | - | 1root+3claw |
| Maximum pumping speed | m³/h | 300 |
| Ultimate pressure (total pressure) | mbar | 0.05 |
| Motor power | kW | 11 |
| Weight | kg | 565 |
| Noise level** | dB(A) | 78 |
| Inlet connection | - | ISO63 |
| Exhaust connection | - | KF50 |
| Gearbox oil capacity | L | 3.5 |
| Recommended oil (supplied) | - | ISOVG 150 |
| Cooling system type | - | Direct water-cooling |
| Cooling-water flow | l/min | 5 to 10 |
| Supply temperature range | deg. C | 5 to 35 |
| Cooling-water supply pressure | bar G | 2 to 10 |
| Shaft-seals air/nitrogen purge | - | Yes |
| Pressure relief valve | - | Yes |
| Overall dimensions (Length × Width × Height) | mm | 850×730×1614 |
- Capacity @ 1torr :300m3/hr
- Capacity @0.1 torr : 100m3/hr
- Ultimate Vacuum- Pump with booster : 0.005 mbar
- Pump with Booster : 1000 m3/hr @ 0.1 torr
- Pump with 2 Boosters : 2000 m3/hr @ 0.1 torr
Material Of Construction:
- Stators: Spheroidal Graphite Iron SG 450-10 IS:1865 (Ductile Iron / Nodular Iron)
- Rotors - Claw and Lobe: Spheroidal Graphite Iron SG 450-10 IS:1865 (Ductile Iron / Nodular Iron)
- Shafts: Medium Carbon Steel (45C8)
- Shaft Seal: PTFE Lip Seal
- O-rings: FKM (Viton)
Industries Served :
- Chemical
- Pharmaceuticals
- Food
- Medical
- Electrical and Power
Typical Applications:
- Distillation
- Drying
- Filtration
- Solvent Recovery
- Centralizied Vacuum System - Pharmaceuticals Laboratories
- Freeze Drying
- Short Path Distillation
- Steam Sterillization
