Wilden AODD Pumps
Salient Features :
- Self-priming
- Portable
- High vacuum
- Run-dry capable
- No heat generation
- Higher Flow Rates
- Lube-Free Operation
- Reduced Air Consumption
- Superior Product Containment
- Easy installation
- Corrosion resistant
- Longest Mean Time
- Between Failure (MTBF)

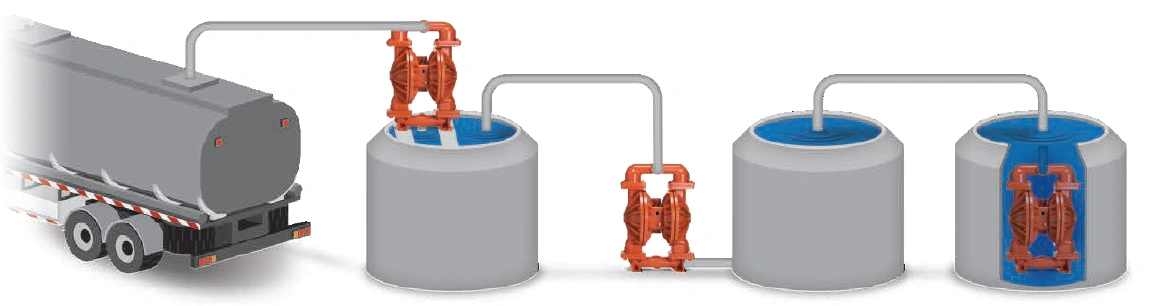

Installation diagram Wilden
Specifications:
Technical Data:
- Material Availability : Aluminum, Ductile Iron, Stainless Steel, Alloy C, Polypropylene, PVDF
- Size Availability : 6 mm (1/4") to 76 mm(3")
- Elastomer Temperatures : -51° C to 177° C
- Elastomer Options : Buna - N, Neoprene, EPDM, Viton, WiI - Flex, Saniflex Polyurethane & PTFE
Performance Data:
- Max. Flow : 1,021 Ipm (270 gpm)
- SMax. Suction Lift : 9.8 m (32.0') wet, 7.6 m (25.0') dry
- Max. Solids Size : 35mm (1-3/8")
Applications:
- Mining
- Oil & gas
- Paints & Inks
- Plating & Finishing
- Pulp & Paper
- Semiconductor
- Waste Treatment
- Solvents
- Acids
- Caustics
- High Viscosity
- High Pressure
- Large Solids
- Abrasive Media Hazardous and Flammable Liquids
- Clean Room Fluids Flammable Liquids
Certifications :

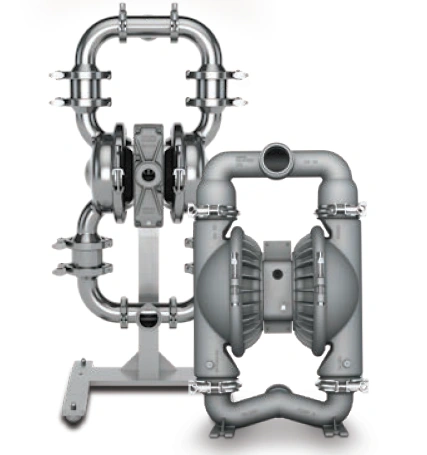

Hygienic and Sanitary Series Specialty Pumps
| Description |
Sanitary pump with flow-through design for efficiently pumping a wide range of viscosities, solids and shear-sensitive products. HIS pumps feature quick disconnect clamps for clean-in-place (CIP) and clean-out-of-place (COP) capabilities |
| Applications | Food and beverage, pharmaceuticals/ bio-pharm |
| Benefits |
|
| Sizes Available |
Saniflo HS: 38 mm (1-1/2"), 76 mm (3") Saniflo FDA: 13 mm (1/2"), 76 mm (3") |
| Max Flow Rate |
Saniflo HS: 844 Ipm (223 gpm) Saniflo FDA: 927 Ipm (245 gpm) |
| Certifications |
*Applies only to Saniflo HS **USP Gass VI certification available only on Saniflo HS pumps with PTSE elastomer options |
