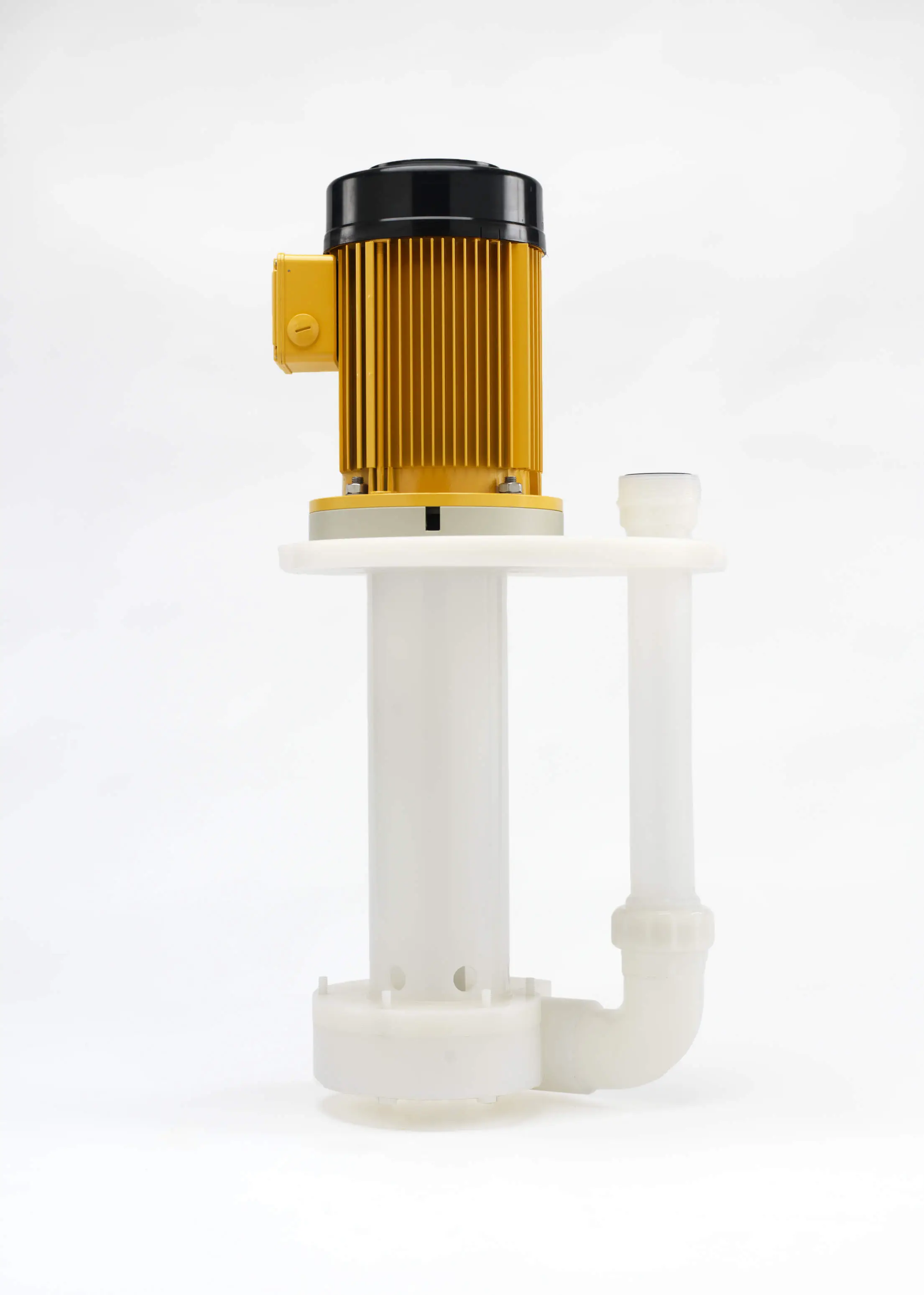

Seal Less Vertical Polypropylene and PE Pumps
Salient Features
- Polypropylene Immersible Pumps are fully immersed in the liquid and meant for continuous operation.
- The extended shaft, encased in a Polypropylene tube, is connected to the Impeller at the other end.
- All the wet parts are made out of Polypropylene and eliminate corrosion.
- The overflow is allowed to pass through the annular space between the shaft and the column pipe.
- The auxiliary impeller provided at the top ensures the liquid does not travel towards the motor side.
- The excess liquid is allowed to flow back to the tank through the drain holes provided in the column Pipe.
Specifications
- Max capacity :26 m3/hr
- Max head : 25 M
- No seal/ No Magnet / No packing.
- No coupling / No alignment.
- Suitable for Dry running.
- Suitable for handling particles.
- Temperature : Up to 90°C.
- In tank & out tank installation.
Application
- Plating industries
- Scrubber systems
- Water treatment plants
- Process applications
- Effluent treatment plants
- Transfer of acid
